100 W Class D amplification.
The amplifier replaces the standard connector and combines Bluetooth and AUX inputs.
Microphase Audio Design · handcrafted loudspeakers
Active SAT monitorsCompact active monitoring.
The compact SAT design with integrated 100 W Class D amplification, Bluetooth and AUX inputs. Choose the standard active monitor or the battery-powered version.
Current price and availability confirmed directly with MAD
Active SAT monitors
100 WIntegrated Class D amplifier
210 mmSquare cabinet face
Bluetooth + AUXWireless and wired inputs
2-wayBass reflex monitor
Design & listening
The SAT, with its own amplification.
The active SAT follows the compact form of the original Microphase loudspeaker introduced in 1984. Bespoke Audax drivers and a time-aligned tweeter sit in a marine-grade birch-plywood cabinet with a clear polyurethane finish.

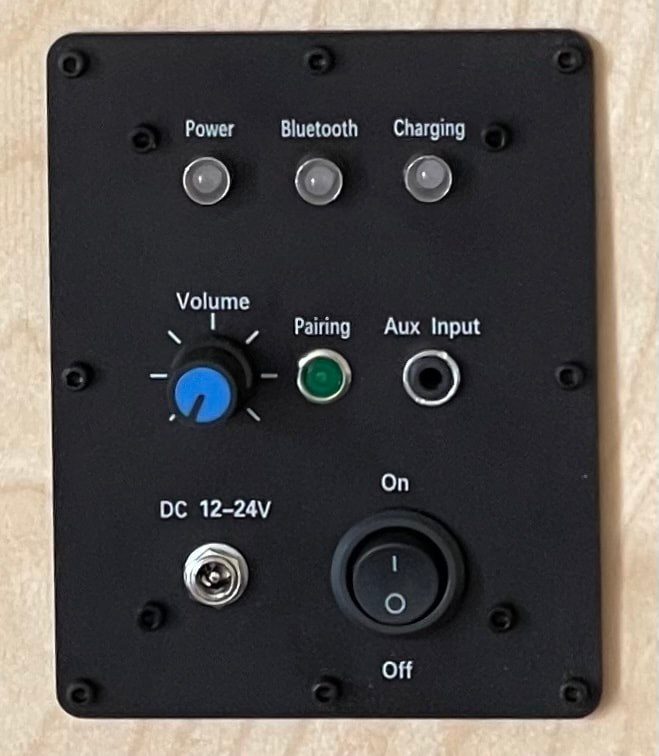

The integrated amplifier supports wired listening through AUX and wireless listening through Bluetooth. An optional lithium battery pack adds portability; the battery-powered pair is listed separately.
The art and the science
The design, in detail.
Explore the choices behind Active SAT monitors.
Bespoke Audax components.
The main driver uses a paper membrane and phase plug. The tweeter is also made by Audax.
Battery-powered listening.
Ask Jean-Marie about the currently available battery option and its price.
- Configuration
- Two-way miniature active bass reflex monitor with time-aligned tweeter
- Cabinet
- Marine-grade birch plywood with clear polyurethane finish
- Dimensions
- 210 × 210 × 145 mm
- Frequency response
- 60 Hz–25 kHz ±6 dB
- Efficiency
- 90 dB / 1 W / 1 m
- Nominal impedance
- 4 ohms
- Crossover
- 4 kHz · 6 dB/octave
- Amplification
- 100 W Class D, with Bluetooth and AUX inputs
- Standard active pair
- Confirm the current option and price with MAD.
- Optional battery pack
- Confirm the current option and price with MAD.
- Battery-powered pair
- Confirm the current option and price with MAD.
A closer look
Active SAT monitors. Visible craft.
Hear the difference
Could Active SAT monitors be right for your space?
In SydneyArrange a personal listening session with Jean-Marie.
Elsewhere in AustraliaShare your room, amplifier and listening habits for a personal recommendation.
BUY DIRECT FROM MAD
Ask Jean-Marie about Active SAT.
Discuss your room, system and any suitable personal refinements directly with the maker. MAD will confirm current price, availability and order terms.
